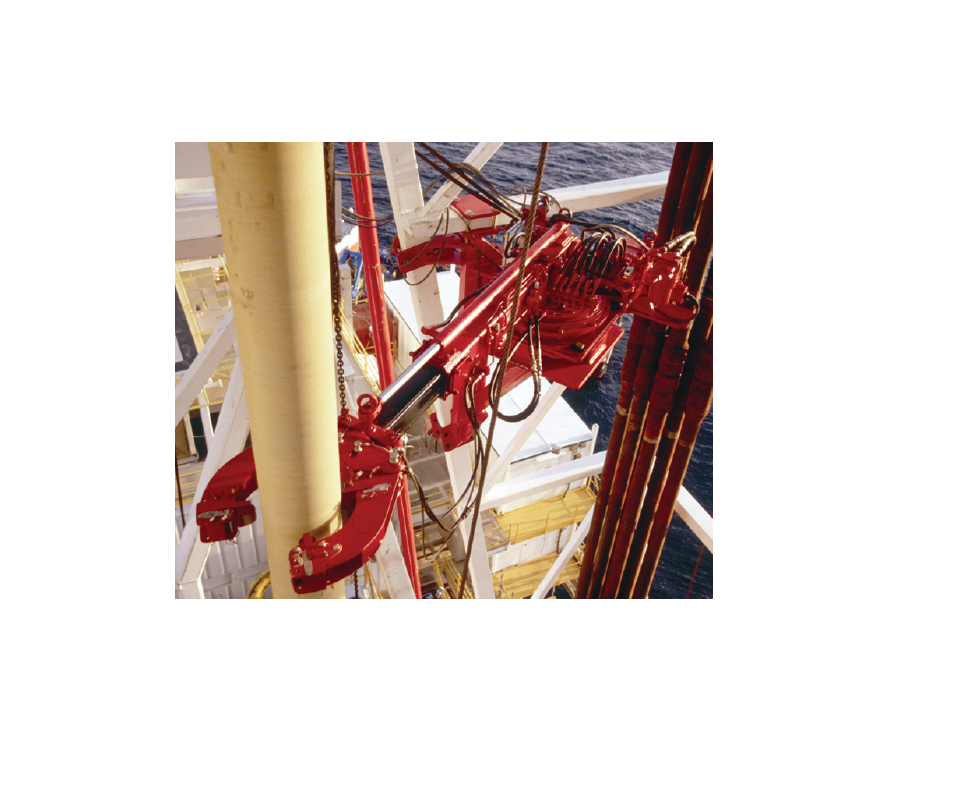

The StabMaster™ pipe alignment system—the primary component of Weatherford’s patented* Stabberless® system—is a mechanical device that centers the pipe during stab-in. Before the power tongs are
applied for connection makeup, the StabMaster™ system is lowered and secured around the joint; alignment is remotely controlled from the rig floor, eliminating the need for a stabber in the derrick.
The StabMaster™ system employs the patented Stab Set TM memory feature. After determining the ideal stabbing position (where the connection rotates freely during connection makeup), the operator presses the Stab Set button to store the exact stabbing position in memory. After the connection is made, the StabMaster™ system retracts to a parked position. For each subsequent connection, the operator presses the Stab Return button to return the StabMaster™ system (and the joint) to the same position as before.
Applications:
• Running and pulling 2 3/8- to 36“ tubular
• High-cost applications, when waiting on weather improvement is unacceptable
• Safety-driven operations
Features, Advantages and Benefits:
• Stab Set memory feature reliably returns the StabMaster™ system to the well center for repeatable
efficiency and accuracy.
• Three gripping heads provide dependable and safe operational performance.
• Customized mounting brackets minimize the need for modifications to the rig structure and expedite
installation.
• Remote operation from the rig floor eliminates the need for a stabber in the derrick and
significantly reduces the risk of rig floor and stabbing board accidents.
• Design allows running operations in adverse weather conditions, especially in high winds, that would
otherwise make operations hazardous or impossible.
• System automatically repeats joint positioning for consistent, reliable alignment, decreasing
the cycle time and improving efficiency.
