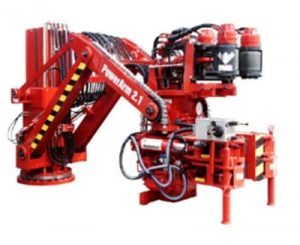

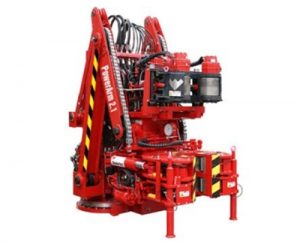

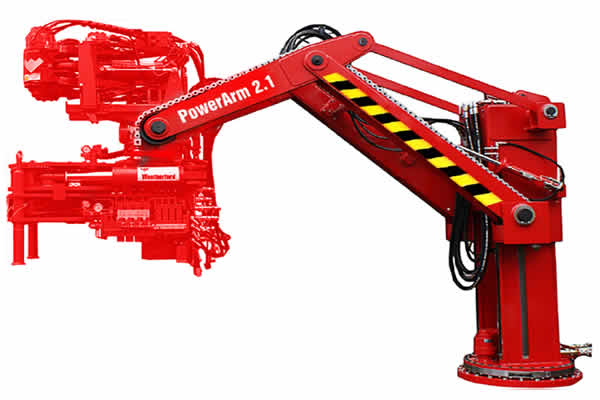

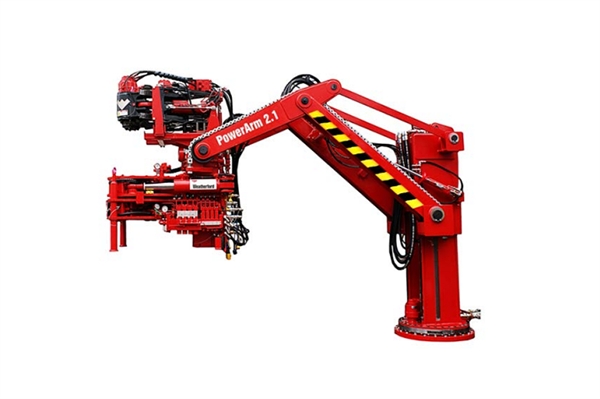

The WEATHERFORD self supporting TorkWrench™ Positioning Device – PowerArm® 2.1 is designed to move an attached TorkWrench® 10-100 Iron Roughneck from its parking position to the well center and back. Especially when space is at a premium or when floor rails are undesirable. For this purpose, the arm of the PowerArm extends and retracts without altering the height of the attached TorkWrench®. During the makeup or breakout process of the TorkWrench®, the PowerArm® guides the tong and fulfills the horizontal and vertical moveability of the attached TorkWrench®. Furthermore it allows rotations of nearly 360°.
All functions are driven by the pneumatically controlled valve sections of the TorkWrench® for remote controlled operation. The PowerArm® 2.1 is fastened to the rig floor and thus provides a secure and convenient manner to move the attached TorkWrench®.
The WEATHERFORD self-supporting TorkWrench® Positioning Device – PowerArm® 4.4 is designed to move an attached TorkWrench® 10-100/145 Iron Roughneck from its parking position to the well center and back. Especially when space is at a premium or when floor rails are undesirable. For this purpose, the arm of the PowerArm® extends and retracts without altering the height of the attached TorkWrench®. During the makeup or breakout process of the TorkWrench®, the PowerArm® guides the tong and fulfills the horizontal and vertical moveability of the attached TorkWrench®. Furthermore it allows rotations of nearly 360°. All functions are driven by the pneumatically controlled valve sections of the TorkWrench® for remote controlled operation. The PowerArm® 4.4 is fastened to the rig floor and thus provides a secure and convenient manner to move the attached TorkWrench®.

Applications
1.PowerArm® 2.1-Manipulation of attached TorkWrench® 10-100 Iron Roughneck
2.PowerArm® 4.4-Manipulation of attached TorkWrench® 10-100/145 Iron Roughneck

Features, Advantages and Benefits
1.Designed to provide quick, safe and accurate operation
2.Extends and retracts without necessity to alter the height of attached TorkWrench™
3.Total control through valve section of the TorkWrench™
4.PowerArm® 2.1-Max. horizontal stroke of attached TorkWrench®: 2016 mm/79.4 inch
5. PowerArm® 2.1-Vertical movability of attached TorkWrench® by approx 1000 mm/39.4 inch to allow high alignment of the tong
6.Rotation of PowerArm® with attached TorkWrench® of nearly 360°
7.PowerArm® 4.4-Max. horizontal stroke of attached TorkWrench®: 4000 mm/157,5 inch
8.PowerArm® 4.4-Vertical movability of attached TorkWrench® by approx 4000 mm/157,5 inch to allow high alignment of the tong
9.PowerArm® 4.4-Certified for ATEX Zone 1
