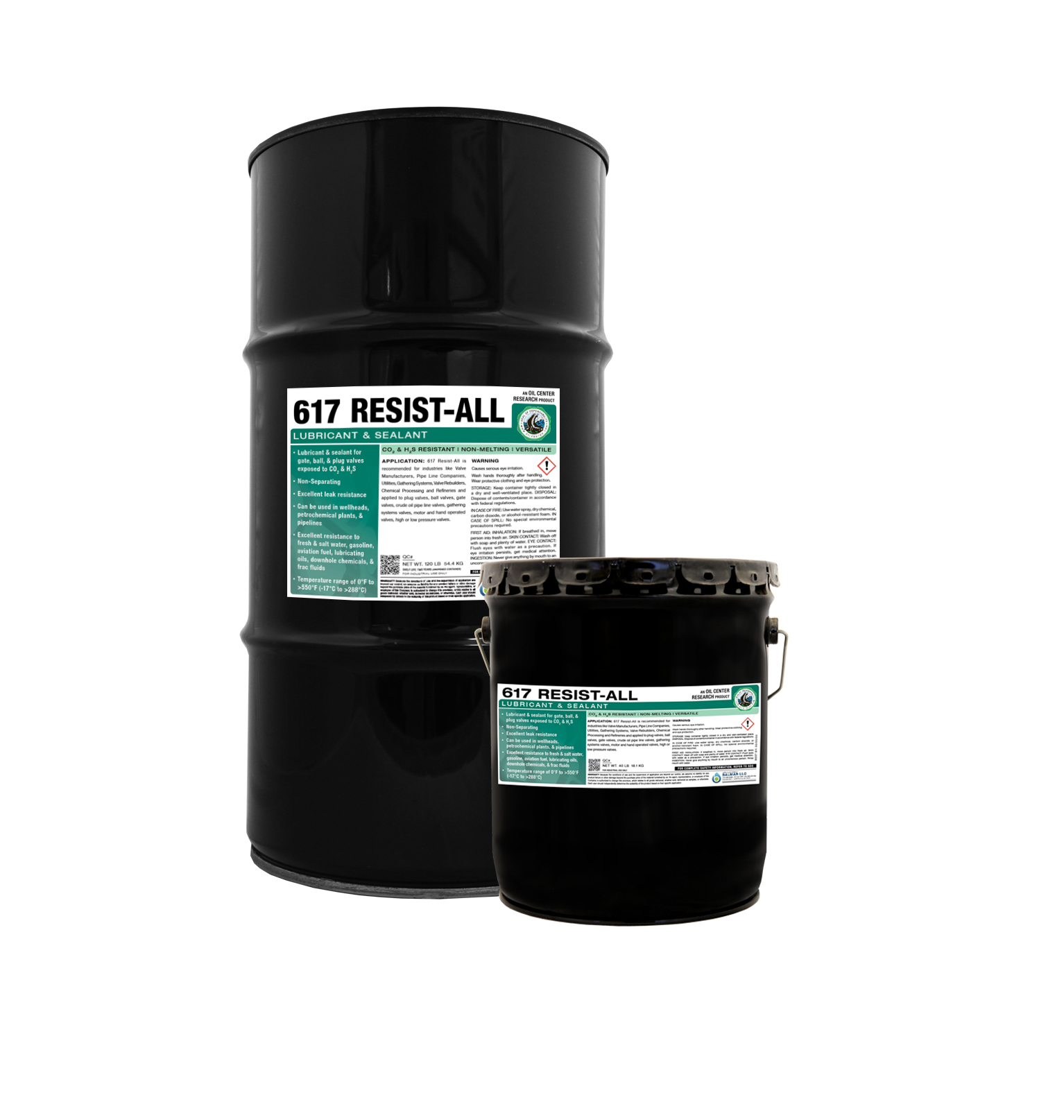

Liquid-O-Ring 617 Resist-All is a lubricant and sealant for gate, ball, and plug valves exposed to CO2 and H2S. This product is also oil and gasoline resistant and can be used in numerous oilfield applications including wellheads, petrochemical plants, and pipelines.Liquid-O-Ring 617 Resist-All has excellent resistance to fresh and salt water, gasoline, aviation fuel, lubricating oils, and many downhole chemicals and frac fluids. Liquid-O-Ring 617 Resist-All services temperatures from 0°F to temperatures greater than 500°F, making it very versatile for a broad range of applications.
Liquid-O-Ring 617 Resist-All is recommended for industries like Valve Manufacturers, Pipe Line Companies, Utilities, Gathering Systems, Valve Rebuilders, Chemical Processing and Refineries and applied to plug valves, ball valves, gate valves, crude oil pipe line valves, gathering systems valves, motor and hand operated valves, high or low pressure valves.
BENEFITS:
▪ Resists CO2 and H2S
▪ Resistant to diesel
▪ Temperature range of 0°F to >550°F (-17°C to >288°C)
▪ Insoluble in water, oilfield brine, and hydrochloric acid
▪ Non-melting
▪ Non-separating
▪ Excellent leak resistance
▪ Proprietary synthetic blend
TYPICAL OBSERVATIONS:
Color:Yellow
Texture:Smooth Paste
Density, lb/gal @ 77°F (25°C):7.21
Specific Gravity, @ 77°F (25°C):0.86
Dropping Point, ASTM D-2265:570°F (298°C)
Flash Point, ASTM D-92 based on oil:>450°F (232°C)
Viscosity of Base Oil,
cSt @ 40°C:300
Penetration, ASTM D-217 @ 77°F (25°C):280
Corrosion Preventive Properties,ASTM D-1743 @ 125°F (51°C):Pass
Water Washout Characteristics,ASTM D-1264 @ 100°F (37°C):Nil
Oil Separation, ASTM D-1742 @ 77°F (25°C):<5.0%
Evaporation Loss,ASTM D-972 @ 210°F (98°C):0.3%
Shelf Life (unopened container):Two years
