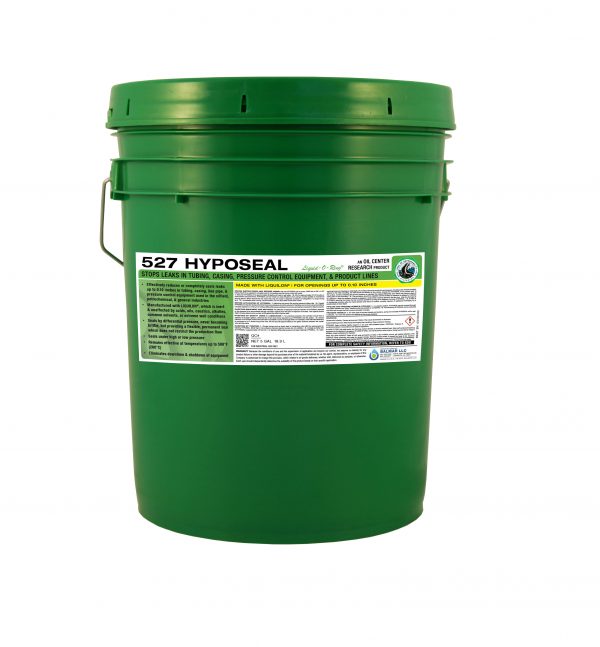

Liquid-O-Ring 527 Hyposeal effectively reduces or completely seals leaks in tubing, casing, surface units, wellhead
flanges, production lines, and pressure control equipment used in the oilfield, petrochemical, and
general industries. A seal can be affected even in instances where the exact location of the leak can
not be determined. The ID of the line is not reduced by the use of this product.Liquid-O-Ring 527 Hyposeal is made with LIQUILON, which produces a seal that controls leakage in operating systems. LIQUILON is inert and unaffected by acids, oils, caustics, alkalies, common solvents, or extreme well conditions.Liquid-O-Ring 527 Hyposeal seals by differential pressure, never becoming brittle but providing a flexible, permanent seal, which does not restrict the production flow. In addition, it seals under high or low pressure and remains effective at high well temperatures. Because of its effective sealing capabilities, Liquid-O-Ring 527 Hyposeal eliminates downtime and shutdown of equipment.
APPLICATION:
Liquid-O-Ring 527 Hyposeal is recommended for openings up to .10 inch (.254 cm) (small leaks), and one kit is recommended for every 2,500 feet (762 m) of 2⅜” (6.04 cm) tubing. The one step time-saving application eliminates the need for rigging up for a workover job, pulling tubing, or disassembling processing equipment. Liquid-O-Ring 527 Hyposeal is effective on oil or gas wells and on-stream work in refineries and plants. Its sealing characteristics are aided by differential pressure to form a seal-lock action from within resulting in a permanent seal.
BENEFITS:
▪ Excellent sealing of leaks in piping systems
▪ Controls leakage in operating systems
▪ Eliminates downtime and shutdown of equipment
▪ Easily mixes with fresh or salt water
TYPICAL OBSERVATIONS:
Appearance:Gel Form
Color:Pale Green
Odor:Mild
Active Component:LIQUILON
Manufacturing Process:Fluoromation
Density, lb/gal @ 77°F (25°C):11.0
Specific Gravity @ 77°F (25°C):1.32
Flash Point, ASTM D-92 245°F:(118°C)
Freezing Point:-40°F (-40°C)
Shelf Life (unopened container):One year
