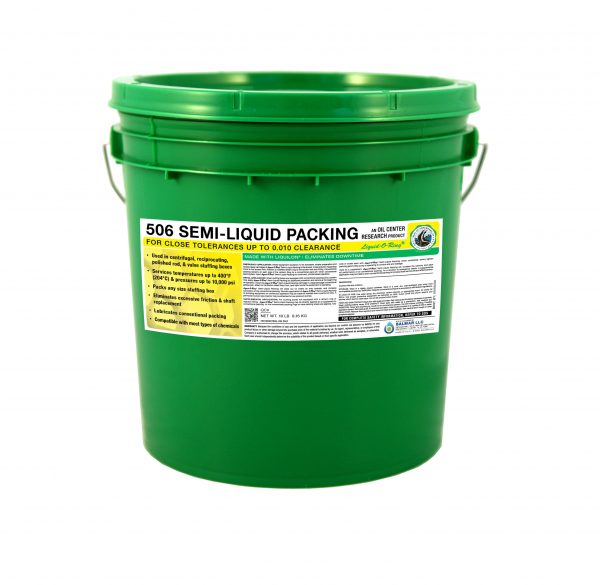

Liquid-O-Ring 506 Semi-Liquid Packing is made with LIQUILON, a solid film lubricant that plates metal surfaces and provides the lowest coefficient of friction of any material available today.Liquid-O-Ring 506 Semi-Liquid Packing provides superior sealing and lubrication while repairing scored, pitted, and damaged shafts with constant use.Liquid-O-Ring 506 Semi-Liquid Packing is designed especially for close tolerances up to 0.010 inch clearance.
Liquid-O-Ring 506 Semi-Liquid Packing is recommended for the elimination of downtime in centrifugal pumps.Liquid-O-Ring 506 Semi-Liquid Packing may be applied to stuffing boxes with or without a lantern ring or injection hole.
BENEFITS:
▪ Packs any size stuffing box
▪ Seals, lubricates, and helps repair scored and pitted shafts
▪ Eliminates downtime
▪ Compatible with most types of chemicals
TYPICAL OBSERVATIONS:
Color:Green
Texture:Grainy, Rough Paste
Thickener Non-Soap
Active Component:LIQUILON
Manufacturing Process:Fluoromation
Density, lb/gal @ 77°F (25°C):11.34
Specific Gravity, @ 77°F (25°C):1.36
Flash Point, ASTM D-92:>400°F (>204°C)
Dropping Point, ASTM D-2265:>500°F (>260°C)
Penetration,ASTM D-217, worked @ 77°F (25°C):175
Evaporation Loss,ASTM D-972 @ 210°F (98°C):0.13%
Oil Separation,ASTM D-1742 @ 77°F (25°C):Nil
Oxidation Stability, ASTM D-942 @ 210°F (98°C), 72 hrs, PSI Loss:3
Shelf Life (unopened container):Two years
